Turbo Electronic Actuator SA1150-12V-3701991 for 2005-15 Various Trucks with 15.0L Cummins ISX

Product Details

SACER SA1150 smart electronic actuator is designed for VGT (Variable Geometry Turbocharger) systems used in medium-duty and heavy-duty diesel engines. It is widely applied in turbocharger control to improve engine efficiency, reduce emissions, and meet current and future exhaust emission standards.

This actuator precisely controls the turbocharger vane position, ensuring real-time coordination between the engine combustion process and turbocharging system. It helps optimize air intake, improve fuel economy, and reduce exhaust pollution in demanding HDV (Heavy Duty Vehicle) applications.

Key features include:

• High-precision positioning for VGT turbocharger control
• Faster response for improved engine performance and emission control
• Supports fuel efficiency optimization and lower emissions
• Designed for ISO9001 / IATF16949 compliant manufacturing standards
• Wide operating temperature range: -40°C to 125°C
• Flexible adjustment angle up to 120° for heavy-duty applications

SACER SA1150 actuator is suitable for a wide range of diesel engine turbocharger systems where stable performance, durability, and emission compliance are required.

Specifications

Notes:

To ensure correct actuator selection and installation:

• We strongly recommend that the actuator be installed by a professional using the necessary scanner or diagnostic equipment for proper pre-alignment with the turbocharger.

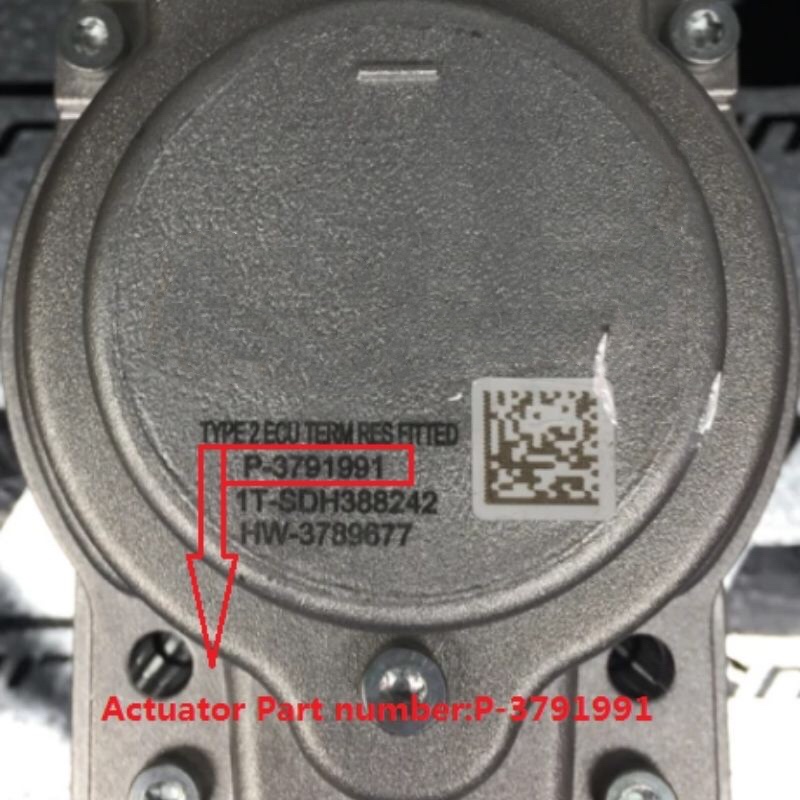

• If you are unable to identify your turbocharger actuator manufacturer or part number, SACER technical staff will assist you with identification.
• You may send us a reference photo of your actuator for confirmation before ordering.

APPLICATION

Ref. NO.

2835940 2837201 2837201RX 3789676 4032066 4032673 4032760 4032760NX 4032760RX 4034116 4034208 4034210 4034289 4034289HX 4034289RX 4042307 4045108 4045991 5350536 5350539 5350542 5350545 5350611 5350622 5350625 5350630 5350640 5350641H 5354886 5354889 5354893 5355182 5355182 5355196H 5355196H 5355399 5355406 5454760 5455154 5458278H 5496314 5496314H 5550526 5638668 5638668RX 6789677 3789677 4034403 4034403RX Turbocharger NO.

2840519 2843821 2881785 2881785NX 2881785RX 2881787 2881787RX 2881788 2881788RX 2881997 2881997NX 2881997RX 2881999 2881999RX 2882001 2882001RX 2882011 2882011RX 2882012 2882012NX 2882015 2882110 2882110NX 2882112 2882112NX 2882112RX 3769054 3769055 3769056 3769058 3769059 3769061 3773488 3773492 3773495 3781364 3792583 3792570 3795122 3795142 3796351 3799078H 3799079H 3799080H 3799105 3799105RX 3799106 3799106RX 3799107 3799107RX 3799108 3799108RX 4309076 4309076 4309076NX 4309076RX 4309079 4309079RX 4309080 4309080RX 4309081 4309081RX 4309082 4309082NX 4309082RX 4955425 4955425NX 4955427 4955427RX 4955773 4955773RX 4956010 4956010NX 4956012 4956012RX 4956013 4956013RX 5350499 5350502 5350588 5354711H 5354714 5357368 5458272 5458503 5458503RX 6378270 6378270H 4309124 2882111 2882111NX 2882111RX 4309078 3792576 5350501 5359603 3795142 2882112 3792583 3792246 5350629 3792250 5456971 3795152 3795128 5357368 5357368RX  3792785 3792795 4309078 4309078NX 4309078RX 3795136 4309077 4309077NX 4309077RX 4955426 4955903 4956011 4956011NX 2881786 2881786RX  2881786NX 2881998 2991998NX 2881998RX 5457298 5457298RX 5354720 5354720H

Application

2005-15 Various Trucks with15.0L Cummins ISX
