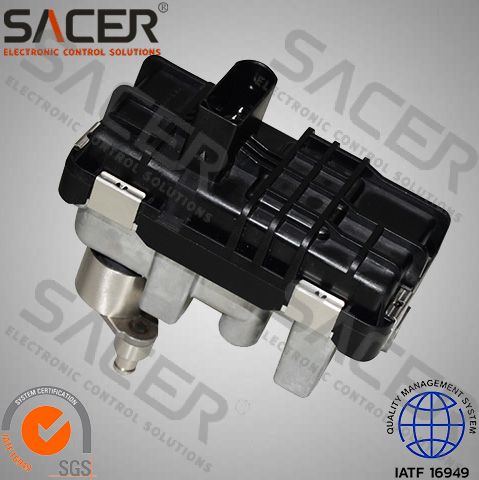

SA1160-UTA-G034-H790 Electronic Turbo Actuator Repair for Hella 1000E002242-790 and Garrett 797862-0034
SKU
SA1160-UTA-G034-H790
TYPICAL APPLICATIONS
SACER SA1160-UTA-G034-H790 intelligent electronic actuators are commonly used in Garrett VNT turbochargers (applications such as passenger car/light-duty diesel engines) to provide optimal performance and meet current and future emissions standards.
No. G/No. 6NW
1000E002242-790
Garrett Turbo No.
797862-0034
Application
L42B GTD1752
Connector Position
Center
Features
Lever Angle Tolerance ≤ +/- 1.5 degrees
Lever Backlash Tolerance ≤ +/- 1.75 degrees
Lever Torque ≥ 2.5 Nm
High-quality laser welding
Power Supply: 14 V DC (Range: 10.5 V to 16 V)
Temperature Range (Operating): -40 °C to +125 °C
Temperature Range (Storage): -40 °C to +150 °C
Control Quality
Full functional testing and confirmation of each unit.
Full 1-year European warranty. Complete functional testing, temperature testing, endurance testing, drop testing, vibration testing, salt spray testing, destructive testing, and EMC testing.
